Current Location：Home》Product》Vane air motor

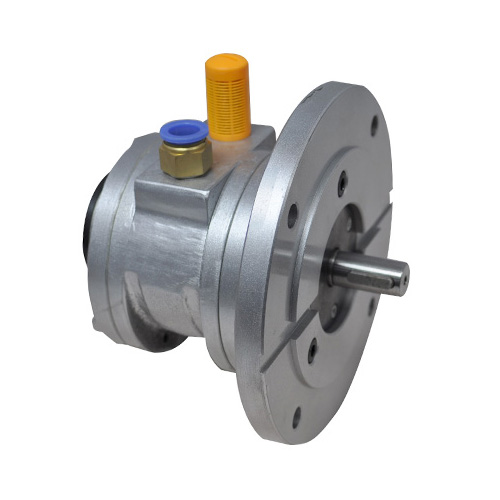

QAM480
Model：QAM150
Power：5.25HP
Rotate Speed：3000 Rpm （Adjustable）
Idling：6000Rpm
Torque：14.4N.m
Starting Torque：23N.m
Maximum Torque：28N.m
Air Consumption：2900Lmin
Pressure：0.6MPa
Weight：11Kg
Product parameters
|
Model |
Gear Ratio |
Maximum efficacy |
Idling (R.p.m) |
Starting Torque (N.m) |
Maximum Torque (N.m) |
Weight(Kg) |
|||||
|
Power (HP) |
Torque (N.m) |
Rotate Speed (R.p.m) |
Air Consumption (L/min) |
Basic |
Vertical |
Horizontal |
|||||
|
QMY005 |
1 |
0.05 |
0.18 |
2000 |
63 |
3920 |
0.29 |
0.36 |
1.0 |
1.1 |
1.4 |
|
QMY020 |
1 |
0.2 |
0.72 |
2000 |
136 |
3920 |
1.15 |
1.44 |
2.0 |
2.1 |
2.6 |
|
5 |
3.6 |
400 |
800 |
5.76 |
7.2 |
|
|||||
|
10 |
7.2 |
200 |
400 |
11.52 |
14.4 |
||||||
|
15 |
10.8 |
133 |
266 |
17.28 |
21.6 |
||||||
|
20 |
14.4 |
100 |
200 |
23 |
28.8 |
||||||
|
30 |
21.6 |
66 |
132 |
34.5 |
43.2 |
||||||
|
40 |
28.8 |
50 |
100 |
46 |
57.6 |
||||||
|
50 |
36 |
40 |
80 |
57.6 |
72 |
||||||
|
60 |
43.2 |
33 |
66 |
69 |
86 |
||||||
|
QMY040 |
1 |
0.4 |
2.03 |
1400 |
420 |
2800 |
3.25 |
4.06 |
4.0 |
4.2 |
4.8 |
|
5 |
10.15 |
280 |
560 |
16.24 |
20.3 |
|
|||||
|
10 |
20.3 |
140 |
280 |
32.5 |
40.6 |
||||||
|
20 |
40.6 |
70 |
140 |
64.9 |
81.2 |
||||||
|
30 |
60.9 |
47 |
94 |
97.4 |
121.8 |
||||||
|
40 |
81.2 |
35 |
70 |
129.9 |
162.4 |
||||||
|
50 |
101.5 |
28 |
56 |
162.4 |
203 |
||||||
|
80 |
162.4 |
17.5 |
36 |
260 |
325 |
||||||
|
100 |
203 |
14 |
28 |
325 |
406 |
||||||
|
QMY060 |
1 |
0.6 |
3.04 |
1400 |
630 |
2800 |
4.13 |
5.16 |
4.4 |
4.7 |
5.5 |
|
5 |
15.2 |
280 |
560 |
24.32 |
30.4 |
|
|||||
|
10 |
30.4 |
140 |
280 |
48.64 |
60.8 |
||||||
|
20 |
60.8 |
70 |
140 |
97.28 |
121.6 |
||||||
|
30 |
91 |
47 |
94 |
145.9 |
182 |
||||||
|
40 |
121.6 |
35 |
70 |
194.56 |
243.2 |
||||||
|
50 |
152 |
28 |
56 |
243.2 |
304 |
||||||
|
80 |
243.2 |
17.5 |
35 |
389.1 |
486.4 |
||||||
|
100 |
304 |
14 |
28 |
486.4 |
608 |
||||||
|
QMY100 |
1 |
1 |
5.1 |
1400 |
1120 |
2800 |
8.16 |
10.2 |
6.1 |
6.5 |
7.0 |
|
5 |
25.5 |
280 |
560 |
40.8 |
51 |
|
|||||
|
10 |
51 |
140 |
280 |
81.6 |
102 |
||||||
|
20 |
102 |
70 |
140 |
163.2 |
204 |
||||||
|
30 |
153 |
47 |
94 |
244.8 |
306 |
||||||
|
40 |
204 |
35 |
70 |
326.4 |
408 |
||||||
|
50 |
255 |
28 |
56 |
408 |
510 |
||||||
|
80 |
408 |
17.5 |
35 |
652.8 |
816 |
||||||
|
100 |
510 |
14 |
28 |
816 |
1020 |
||||||
|
QMY250 |
1 |
2.5 |
12.8 |
1400 |
2100 |
2800 |
20.48 |
25.6 |
11.6 |
12.0 |
14.2 |
|
5 |
64 |
280 |
560 |
102.4 |
128 |
|
|||||
|
10 |
128 |
140 |
280 |
204.8 |
256 |
||||||
|
20 |
256 |
70 |
140 |
409.6 |
512 |
||||||
|
30 |
384 |
47 |
94 |
614.4 |
768 |
||||||
|
40 |
512 |
35 |
70 |
819.2 |
1024 |
||||||
|
50 |
640 |
28 |
56 |
1024 |
1280 |
||||||
|
80 |
1024 |
17.5 |
35 |
1638.4 |
2048 |
||||||
|
100 |
1280 |
14 |
28 |
2048 |
2560 |
||||||
|
QAM150 |
1 |
1.7 |
4.1 |
3000 |
2200 |
6000 |
6.56 |
8.2 |
4.9 |
5.1 |
5.5 |
|
5 |
20.5 |
600 |
1200 |
32.8 |
41 |
GAST 4AM |
|||||
|
10 |
41 |
300 |
600 |
65.6 |
82 |
||||||
|
20 |
82 |
150 |
300 |
131.2 |
164 |
||||||
|
30 |
123 |
100 |
200 |
196.8 |
246 |
||||||
|
40 |
164 |
75 |
150 |
262.4 |
328 |
||||||
|
50 |
205 |
60 |
120 |
328 |
410 |
||||||
|
80 |
328 |
37.5 |
75 |
524.8 |
656 |
||||||
|
100 |
410 |
30 |
60 |
656 |
820 |
||||||
|
QAM360 |
1 |
4 |
10 |
3000 |
3800 |
6000 |
16 |
20 |
8.5 |
9.2 |
9.5 |
|
5 |
50 |
600 |
1200 |
80 |
100 |
GAST 6AM |
|||||
|
10 |
100 |
300 |
600 |
160 |
200 |
||||||
|
30 |
300 |
100 |
200 |
480 |
600 |
||||||
|
50 |
500 |
60 |
120 |
800 |
1000 |
||||||
|
80 |
800 |
37.5 |
75 |
1280 |
1600 |
||||||
|
100 |
1000 |
30 |
60 |
1600 |
2000 |
||||||
|
150 |
1500 |
20 |
40 |
2400 |
3000 |
||||||
|
200 |
2000 |
15 |
30 |
3200 |
4000 |
||||||
|
QAM480 |
1 |
5.25 |
14.4 |
2500 |
4900 |
3920 |
23 |
28.8 |
11 |
12 |
13 |
|
5 |
72 |
500 |
1000 |
115.2 |
144 |
GAST 8AM |
|||||
|
10 |
144 |
250 |
500 |
230.4 |
288 |
||||||
|
30 |
432 |
83 |
166 |
691 |
864 |
||||||
|
50 |
720 |
50 |
100 |
1152 |
1440 |
||||||
|
80 |
1152 |
31 |
62 |
1843 |
2304 |
||||||
|
100 |
1440 |
25 |
50 |
2304 |
2880 |
||||||
|
150 |
2160 |
16.6 |
33.2 |
3456 |
4320 |
||||||
|
200 |
2880 |
12.5 |
25 |
4608 |
5760 |
||||||
|
QAM6 |
1 |
8 |
20.1 |
2800 |
7080 |
5600 |
32.16 |
40.2 |
18 |
||
|
QAM7 |
1 |
9.3 |
24 |
2800 |
8400 |
5600 |
38.4 |
48 |
23 |
||
|
QAM9 |
1 |
12 |
34.4 |
2500 |
11700 |
5000 |
55 |
68.8 |
48 |
||
|
QAM14 |
1 |
20 |
56 |
2500 |
17400 |
5000 |
89.6 |
112 |
53 |
||
